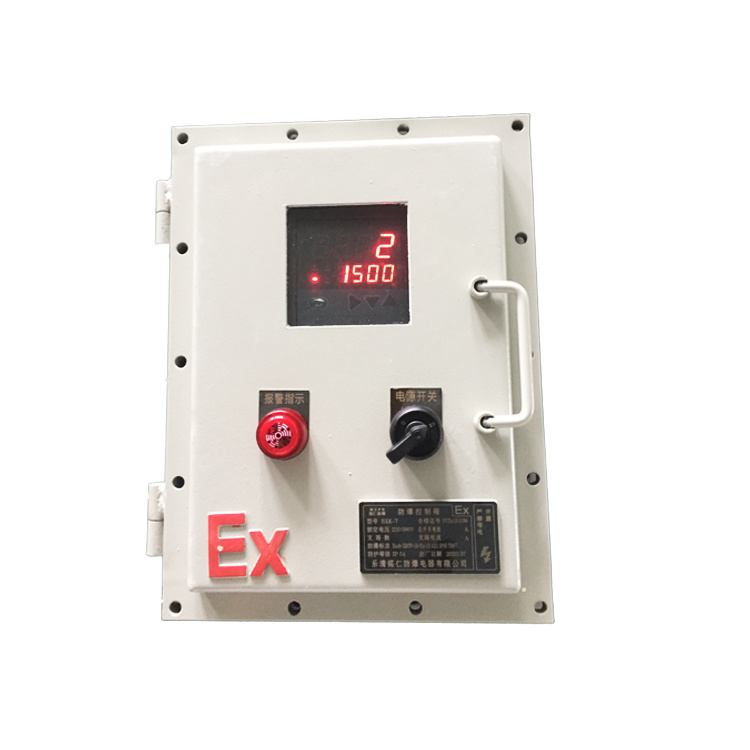

MYEx-P05KPA explosion-proof gas differential pressure alarm
Pressure difference alarm: The digital pressure difference sound and light alarm control instrument is specially designed by our company for industrial dust collectors, spraying equipment, air conditioning filters, boiler furnace negative pressure, positive pressure
Classification:
Product Description
Pressure difference alarm: The digital pressure difference sound and light alarm control instrument is specially designed by our company for industrial dust collectors, spraying equipment, air conditioning filters, boiler furnace negative pressure, positive pressure A high-precision product developed for differential pressure control of compressed air supply systems.
Technical specifications:
·Measurement medium: dry, clean, and non corrosive gas
·Pressure form: gauge pressure, pressure difference
·Adopting a differential pressure core imported from the United States, with high accuracy and good stability, with zero point, full range compensation, and temperature compensation.
·Range 0-5000pa
·Input voltage: 220VAC (16~36VDC to be customized)
·Accuracy: ± 0.5% FS/1.0% (standard type), ± 0.25% FS (high-precision type);
·Long term stability performance: 0.1% FS/year
·Output signal: 1 relay, optional 4-20mA 0-5V, 0-10V output or RS485 communication interface
·LED dual row 4-digit digital display, capable of displaying measured values, peak values, alarm set values, and one click addition and subtraction of alarm values.
·Manual button pressure difference zero calibration
·Overload capacity: 200% FS
·ABS industrial plastic casing, IP65 protection level
·Compensation temperature: -10-70 ℃ Environmental temperature: Normal temperature (-10-70 ℃)
