Fire and smoke exhaust robots:

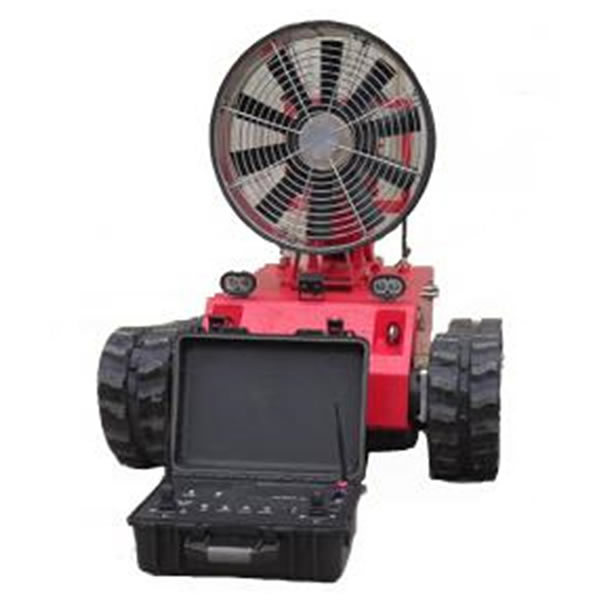

The tracked fire and smoke exhaust robot is composed of a robot body, an onboard smoke exhaust fan, a remote control terminal, and an integrated control cloud platform. The product has stable performance, advanced technology, reliable quality, and convenient disassembly. Each product has undergone professional tuning and performance testing. Powered by a DC motor and equipped with an engineering track chassis, it is flexible and can turn in place, climb hills, stairs, and has strong off-road ability; Equipped with a large flow smoke exhaust fan, it is resistant to high temperatures and works stably for a long time without any faults.
Functional characteristics of fire and smoke exhaust robots:
The chassis and electrical control adopt a fully modular structure, which is convenient for maintenance and repair;
Waterproof design, the car body adopts a 16mm steel enclosed structure, suitable for various complex environments;
The track adopts external high-temperature resistant and flame retardant rubber, and the internal metal skeleton;
High traction force, dragging 200m long and filled with water φ 80 water hose walking;
High definition digital wireless image transmission system, achieving remote real-time video monitoring;
Adopting frequency hopping wireless communication technology, with long communication distance and strong anti-interference ability;
Strong obstacle crossing ability, able to climb and overcome obstacles at large angles;
Strong mobility, fast movement speed, and adjustable speed;
The power drive system is efficient and reliable, equipped with a planetary gear reducer, with high efficiency and a braking unit;
Convenient access to integrated control cloud platforms. (Optional)
Technical indicators of fire and smoke exhaust robots:
Overall weight (kg): 650
Boundary dimension (mm): 1400 × one thousand × one thousand and two hundred
Drive motor: 3kW/48V × two
Transmission form: planetary gear reducer
Battery pack: 48V/45Ah lead-acid battery
Work lighting: 2 × 30W LED light
Endurance (h): 2 (uninterrupted driving), 10 (continuous operation without driving)
Ground clearance (mm): 100
Obstacle crossing height (mm): 300
Climbing slope (%): 90
Driving speed (km/h): 0-4km/h continuously variable transmission
Traction force (N): 5500
Cooling system: natural air cooling
Control form: wireless remote control (in open spaces ≥ 1000m, using digital image transmission and frequency hopping data transmission)
Smoke exhaust volume (m ³/ h) 15000 (optional with 50000)
Pressure (MPa): 0.7-1.4
Image configuration: 360 ° pan tilt camera
Working temperature: -20 ℃~80 ℃
Quick maintenance: The average repair time for faults does not exceed 15 minutes
Application scenarios of fire and smoke exhaust robots:
Used for highway (railway) tunnel fires; Subway station and tunnel fires; Underground facilities and large cargo yard fires; Large logistics warehouse fires; Fires in petrochemical oil depots and refineries; Extinguishing fires involving unknown hazardous materials that are not easily accessible to firefighting vehicles and personnel; Fire extinguishing for factory and civil buildings.
